Double-Tapped Breakers and Bus Bars: A Central Texas Homeowner’s Guide
Double-tapping is a common electrical panel issue that can pose serious safety hazards if left uncorrected. In simple terms, a “double tap” means two wires are connected under one screw or terminal – either on a circuit breaker or on the panel’s bus bar (the metal strip where neutral or ground wires connect). As an inspector serving central Texas areas like New Braunfels, I see double-tapped breakers and bus bars frequently. This post will explain what these are, why they’re dangerous, and how a licensed electrician can fix them.
What Are Double-Tapped Breakers?
A double-tapped breaker is when someone tries to connect two circuit wires into one breaker that is designed for only a single wire. It’s like trying to jam two puzzle pieces into a spot meant for one – it might fit loosely, but it’s not secure or proper. This often happens as a shortcut when adding a new outlet or circuit without adding an extra breaker. Unfortunately, most breakers are not built for two wires, and squeezing them in can lead to trouble. With two wires under one screw, it’s very hard to tighten the connection correctly; one wire can end up loose. A loose wire can start to arc (spark), which is like a tiny lightning bolt in your panel, producing heat. Over time this can cause overheating, burnt insulation, or even an electrical fire.
It’s worth noting that a few specific breaker models are rated for two wires (for example, certain Square D or Cutler-Hammer breakers have a clamp and a tiny symbol on them indicating two wires are allowed). However, these are the exception. Electrical code requires one wire per breaker terminal unless the breaker is explicitly designed for two.
Double-Tapped Bus Bars (Neutrals)

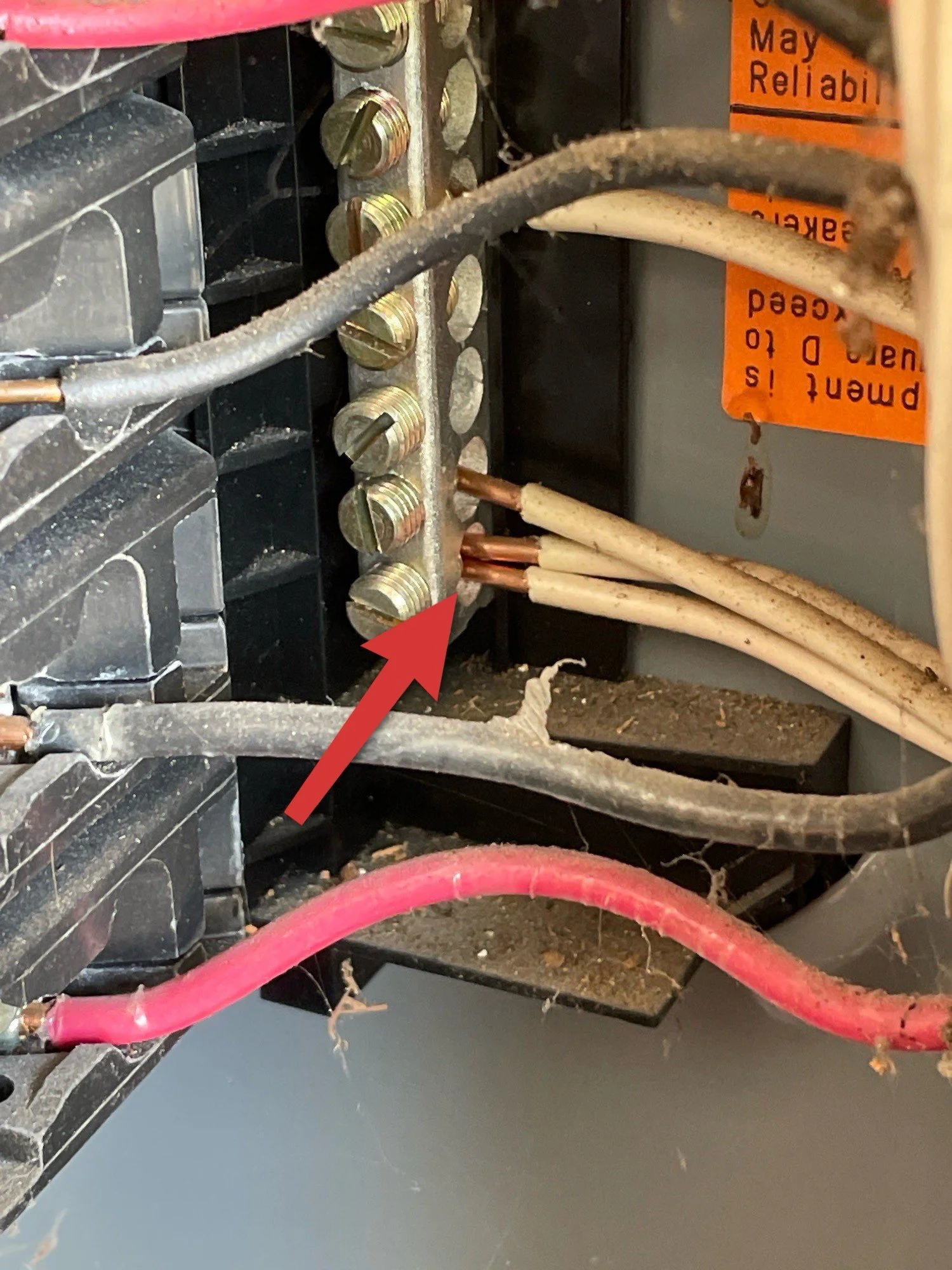

Double tapping isn’t just limited to breakers – it can also happen on the neutral bus bar. Double-tapped neutrals means two neutral wires (the white wires returning current to the panel) are landed under the same screw on the neutral bus. Much like with breakers, two wires under one lug can come loose over time due to the heating and cooling of electrical current. A loose neutral can lead to overheating and arcing, and has the potential to cause a fire if not fixed. There’s evidence of this hazard – inspectors have found charred insulation on neutral wires that were double-lugged and overheated. The rule of thumb (and code requirement) for neutrals is “one screw, one wire.” If your panel has any neutrals doubled up on a single terminal, a qualified electrician will need to separate them for safety.
Why Double Taps Are a Problem
Whether on a breaker or a bus bar, double tapped connections create an unreliable electrical contact. The main issues caused by double tapping include:
Loose Connections and Arcing: Two conductors under one screw may not tighten properly, leading to a loose connection. Electricity can then arc (jump as a spark) between the loose wire and the terminal. Arcing generates intense heat and can damage the breaker or bus bar, and potentially start a fire.
Overheating: A loose or poor contact increases electrical resistance, which produces heat. Over time, this can melt insulation or the plastic around a breaker and trip it frequently, or worse, ignite surrounding materials.
Code Violations: Modern electrical codes and standards (NEC and UL) explicitly forbid double tapping in most cases. If a home inspection or insurance inspection finds double-tapped breakers or neutrals, they will flag it as a defect that needs correction.
In short, double taps are accidents waiting to happen. You might not notice any issue day-to-day – your lights and appliances may seem to work fine – but the risk is hidden inside your panel. It’s best to address it before it causes an outage or fire.
Is It Easy to Fix a Double-Tap?
The good news is that fixing a double-tapped breaker or bus bar is usually straightforward and not very expensive. A licensed electrician can typically resolve most double taps in a single visit. In fact, correcting double-tapped neutrals is often a 10-minute job with just a screwdriver – simply move each wire to its own separate screw on the neutral bar. For a double-tapped breaker, the electrician has a few options depending on the situation:
Add Another Circuit Breaker: Often the simplest fix is to install an additional breaker in the panel and move one of the two wires onto the new breaker. This gives each circuit its own breaker, eliminating the double up. (This assumes the panel has spare space or capacity for a new breaker.)
Use a “Pigtail” Connector: If the panel is full or for convenience, an electrician might use a pigtail. This means the two wires that were double-tapped are disconnected and tied together with a short third wire using a wire connector. That single short wire (the pigtail) is then attached to the breaker terminal. This way, the breaker still only has one wire under its screw, but both circuits are fed through the connector safely.
Panel Upgrades if Needed: In some cases, the reason for a double tap was lack of space. If no breaker slots are open, the electrician might install a tandem breaker (a two-in-one breaker, if the panel model allows it) or suggest adding a sub-panel to give more circuit capacity. These solutions allow each wire its own proper connection point.
A professional will know which method is best for your setup. Importantly, any work inside an electrical panel should be done with the power turned off and by someone knowledgeable – this is not a DIY job for most homeowners, given the shock and fire risks.
Don’t Ignore the Warning Signs
In summary, double-tapped breakers and bus bars are common issues found in many homes (especially older ones or those with DIY additions) and should not be ignored. What might seem like a minor quirk in your electrical panel can lead to loose wires, overheating, and arcing – precursors to serious electrical failures or fire. The fix is usually simple for a licensed electrician, and once corrected, you’ll have peace of mind that your panel is safer and up to code.
